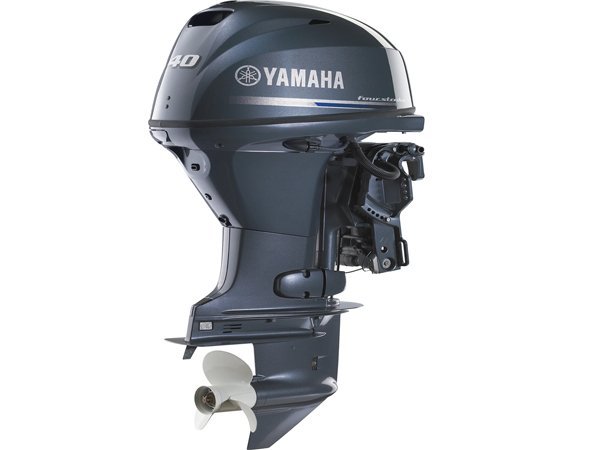

2020 Yamaha 40 HP F40LA Outboard Motor

2020 Yamaha 40 HP F40LA Outboard Motor

Reliability & Durability

• Corrosion Protection: Combined with our proprietary alloy (YDC-30), our exclusive Phaze Five™ anti-corrosive paint system provides a tough, five-layer barrier against corrosion. This protection is standard on all Yamaha Midrange four-stroke engines.
• Advanced Technology: The F40 and F30 are equipped with an Engine Control Module that interfaces with Yamaha Diagnostic System software. This provides a view of selected past and current running conditions, to help technicians provide a complete and accurate diagnosis of your engine.
• Protection from the Elements: A proven one-piece cowling with an intake air drain system easily and efficiently drains water away that enters the cowling. Incoming air is routed through a labyrinth of passages that help trap water before it enters the engine's intake for maximum reliability.
• Cleaner Fuel: A large, on-engine water separating fuel filter with a water sensor is used in conjunction with the Yamaha optional boat-mounted 10-Micron Water Separating Fuel Filter. This helps separate water and contaiminants from the fuel before they can reach the outboard's other filters and fuel injectors.

Convenience & Control

• Control and Comfort: Our optional, award-winning Multi-Function Tiller handle features a Variable Trolling RPM Switch (VTS®). It allows for precision trolling speed adjustments in 50-RPM increments. Compatible with all Midrange models.
• Easy Engine Flushing: A Freshwater Flush Device allows you to flush the engine without running it, for added convenience and extended engine life.
• Power Trim and Tilt: Power trim and tilt models provide a trim range of -3 up to +20 degrees. This brings the bow of the boat up, for better hole shot and top speed and a smoother ride.

Model Specific Features

• Available for mechanical or tiller-handle control
• Only 214 pounds
• Available in a 20” shaft
• Powerful 17-amp alternator
• Optional Variable Trolling RPM Switch (VTS®) via our Multi-Function Tiller Handle, Command Link® tachometer or new helm-mounted remote VTS switch

Specifications

• Engine Type: 3 cyl
• Displacement: 747cc
• Bore x Stroke: 65 x 75mm (2.56 x 2.95 in.)
• Prop Shaft Horsepower: 40hp at 5500rpm
• Full Throttle RPM Range: 5000 ~ 6000 rpm
• Alternator Output at W.O.T.: 17 Amp
• Compression Ratio: 9.4:1
• Fuel Induction System: EFI
• Weight*: 97 kg (214 lbs) - 101kg (223 lbs)
• Recommended Fuel: Octane 87
• Recommended Engine Oil: Yamalube® 4M (See owner's manual)
• Recommended Fuel Filtration: Yamaha 10-Micron Fuel/Water Separating Filter (external)
• C.A.R.B. Rating: 3-Star
• Exhaust: Through Propeller
• Intake: 6
• Ignition: CDI Microcomputer
• Spark Plug: DPR6EB-9
• Alternator Output: 17 Amp
• Starting System: Electric
• Lubrication: Wet Sump
• Engine Oil Capacity: 1.7L/1.5L
• Recommended Cooling: Thermostatic Control
• Ethanol Blend Limit: 10% Maximum
• Gear Ratio: 2.00:1
• Gear Shift: Forward, Neutral, Reverse
• Shaft Length: 20"
• Degree of Tilt: 20°
• Degree of Trim: -3° through +20°
• Dry Weight: 97 kg (214 lbs) - 101kg (223 lbs)
• Mounting Centers: N/A
• Steering Angle (maximum): 40° from center, either direction
• Warranty: Limited 3-year Pleasure, 3-year Government, 1-Year Commercial
